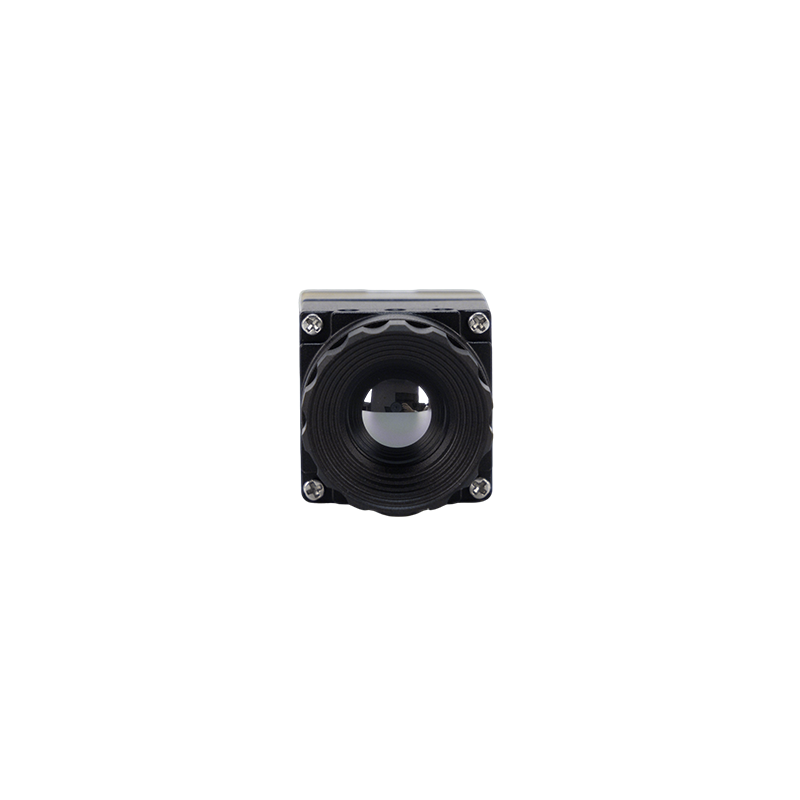

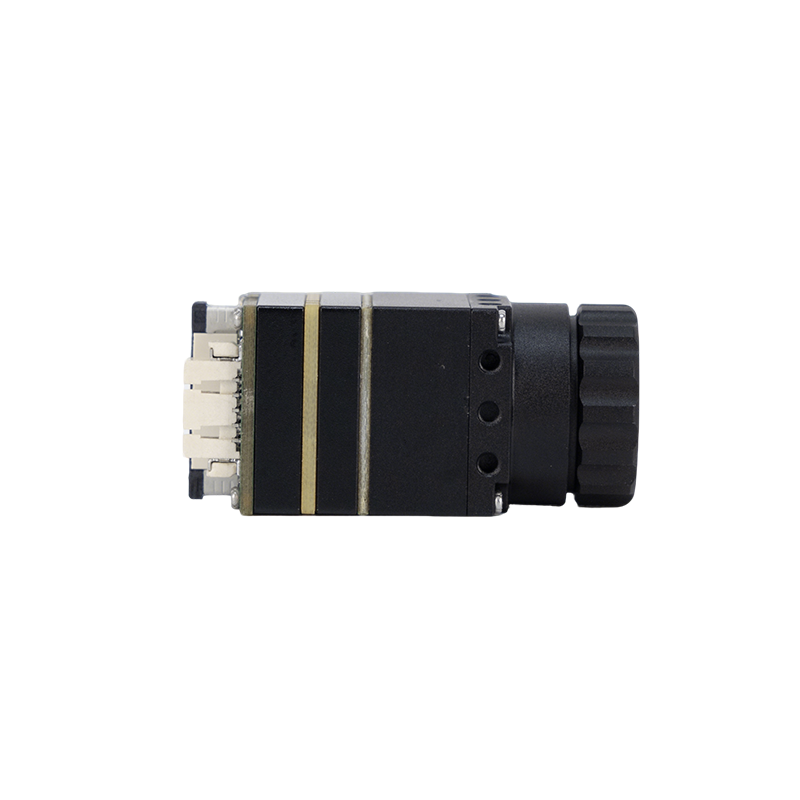

MD Series 384x288 uncooled infrared thermal camera module
| Weight | 0.5 kg |
|---|---|
| Shipping weight of one thermal imaging camera module | 0.5kg |
| Lens | 9mm |
【Warm reminder】
1.Order processing time 7-10 days (Except Backorder Items )+ transportation time 7-10 Days.
2.Our packages are not free shipping by default, and do not include the customer's local import tax, customers are required to assist with customs clearance and tax payment.
1.Product Introduction
1.1. Product description
MD Series of uncooled infrared modules, Contains 384 × 288, and the entire series uses self-developed high refresh rate
12um WLP package detector, It has the characteristics of high performance, small size, light weight, low power consumption and low cost , meeting SWaP (Size, Weight and Power/Price) application requirements.
The entire series is equipped with an unobstructed algorithm, which is smooth and lag-free to use. It is equipped with a new generation of infrared-specific image algorithm , and the image quality is delicate and clear. The module provides a variety of digital interfaces and can be flexibly connected to various intelligent processing platforms.
1.3. Product Features
- High refresh rate across the board
- Standard no-block algorithm
- High-quality images
- High cost performance
1.4.cables and Spare Parts （Options）
-
5PIN-AV CVBS
-
4PIN-USB 2.0
-
15PIN-15PIN （applicable to Raspberry Pi 4）
- 15PIN-22PIN （ applicable to Raspberry Pi 5）
1.5.Applications
Security inspection: industrial monitoring, perimeter scanning, inspection robots, optoelectronic pods
Fire rescue: fire warning, fire helmet
Other specific applications: Drones , power detection and thermal imaging guided missile
Mines Detection
2.1. Product Packaging and Shipping
3.1. Product Paramenters
| Model | MD |
|---|---|
| Sensor | |
| Detector | Vanadium oxide uncooled infrared focal plane detector |
| Resolution | 384×288 |
| Lens | 9mm/13mm/18mm optional |
| Frame rate | 50Hz |
| Pixel pitch | 12μm |
| Working waveband | 8～14μm |
| NETD | ≤50mK@25℃,F#1.0,25Hz |
| Thermal time constant | <12ms |
| Image | |
| Brightness/Contrast Adjustment | 0～255 scale optional |
| Polarity | White heat/Black heat |
| Pseudo Color | Available |
| Electronic zoom | 0.25～2.0 continuous zoom |
| Mirror | Up and down/left and right/diagonal |
| Interface | |
| Analog | CVBS/ PAL/NTSC |

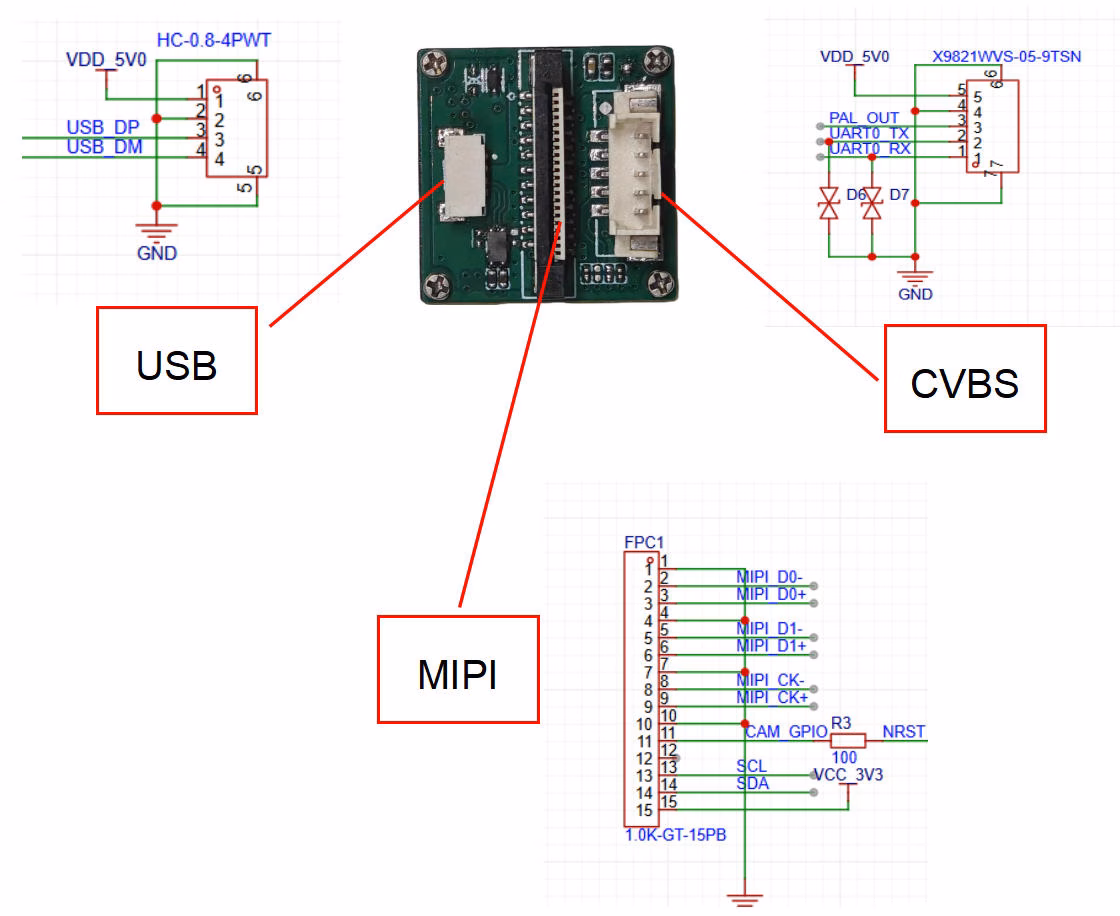

| Digital | DVP/USB/MIPI |
| Communication interface | USB |
| Power | 5V |
| USB power consumption @25℃ | Normal operation：＜0.3W；Shutter operation：＜1.23W |
| Physics | |
| Weight(without lens) | <12g |

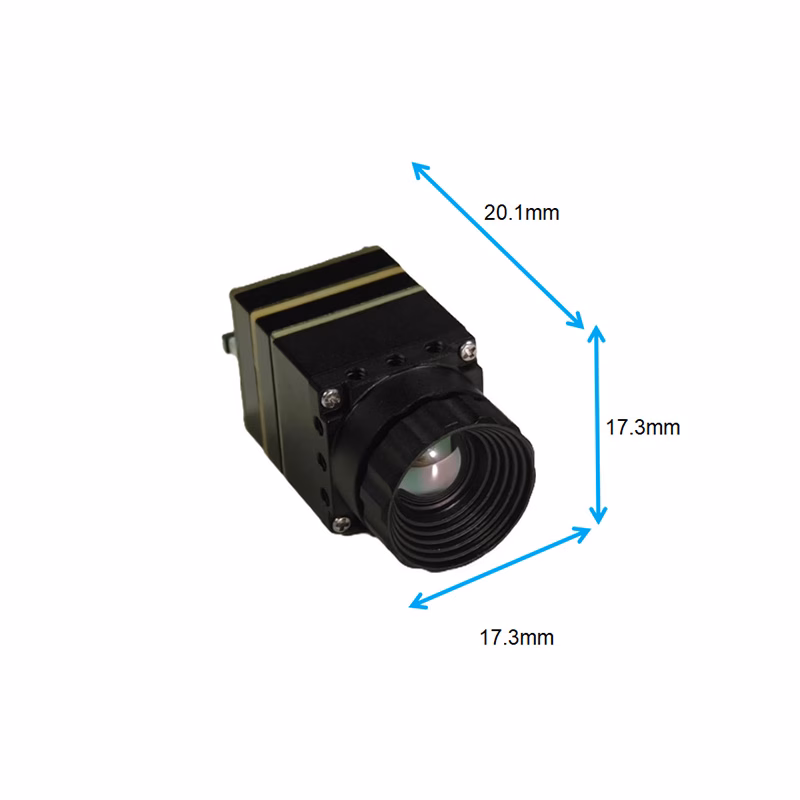

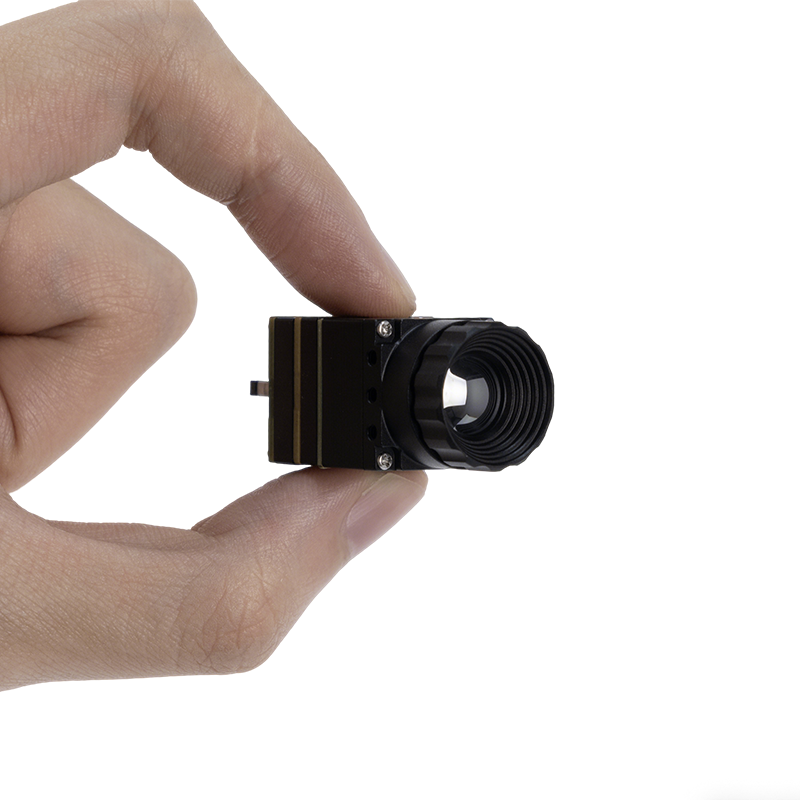

| Size(without lens) | 17.3mm×17.3mm ×20.1mm |
| Environment | |
| Working temperature | -40℃~+80℃ |
| Storage temperature | -50℃~+85℃ |
| Humidity | 5%-95%，No condensation |
| Vibration | 6.06g,Random vibration, all axial directions |
| Impact | 80g @ 4ms ,back peak sawtooth wave,3-axis 6-ways |
