Uncooled LWIR USB Mini 640*512 Thermal Imaging Camera Core Module For Drones Similar To DJI
| Weight | 0.5 公斤 |
|---|---|
| Shipping weight of one thermal imaging camera module | 0.5 kg |
| Net Weight (without lens) | about 6.4g |
| Note: | Radiometric Version only has 9/13/18mm Lens |
| Lens | 4mm, 7mm, 9mm, 13mm, 15mm, 18mm, 25mm, 35mm, 50mm, 60mm, 75mm |

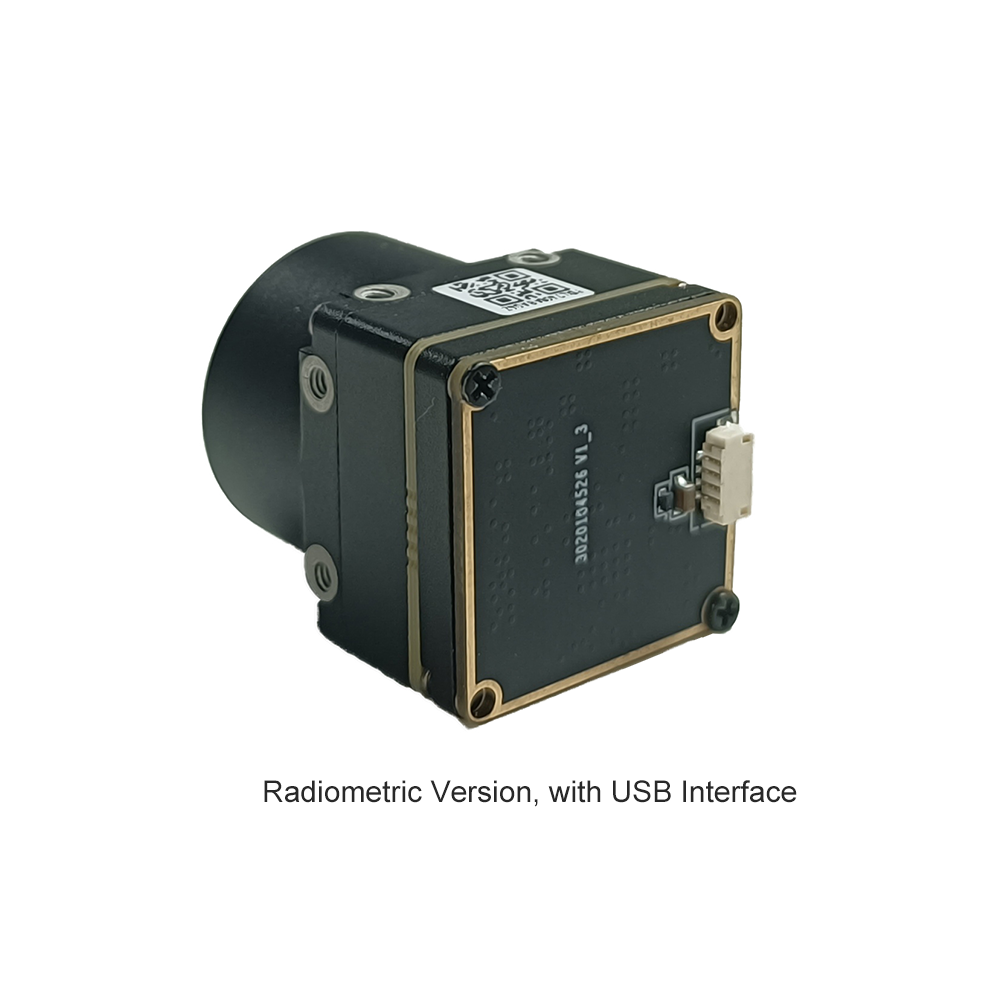

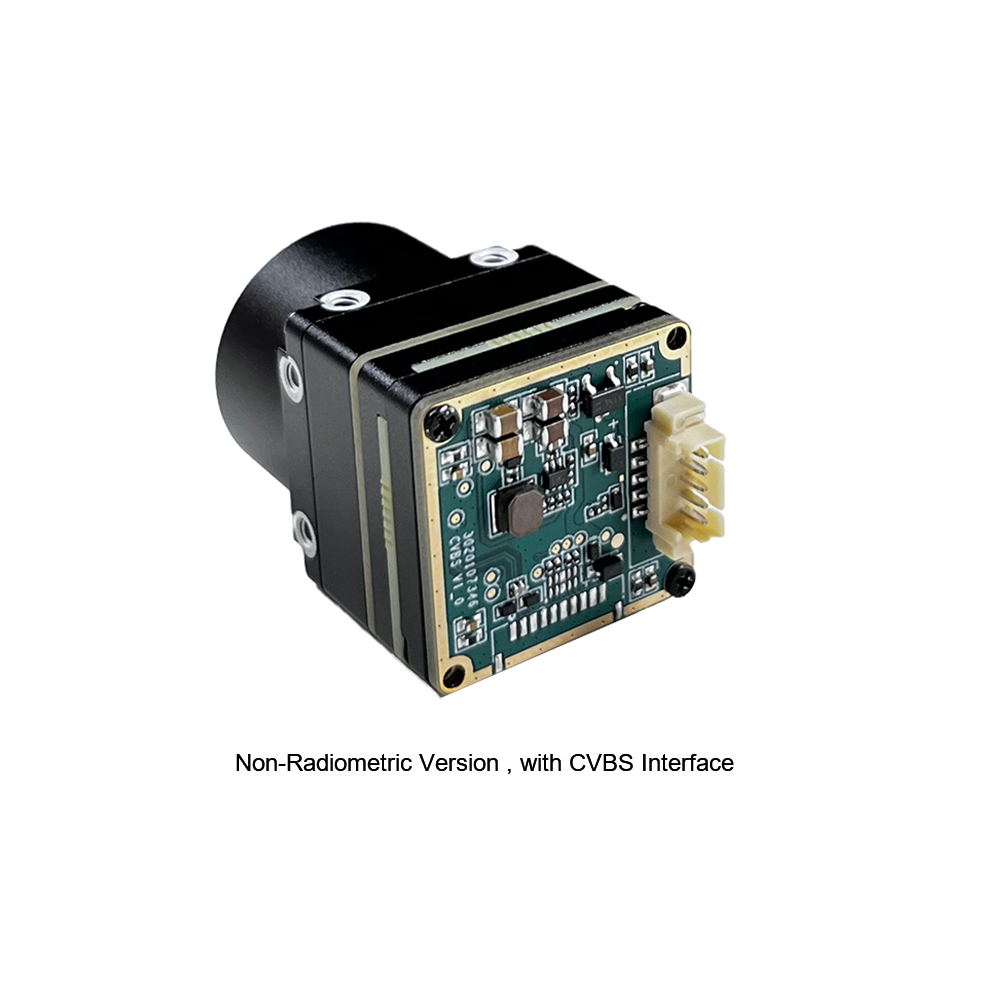

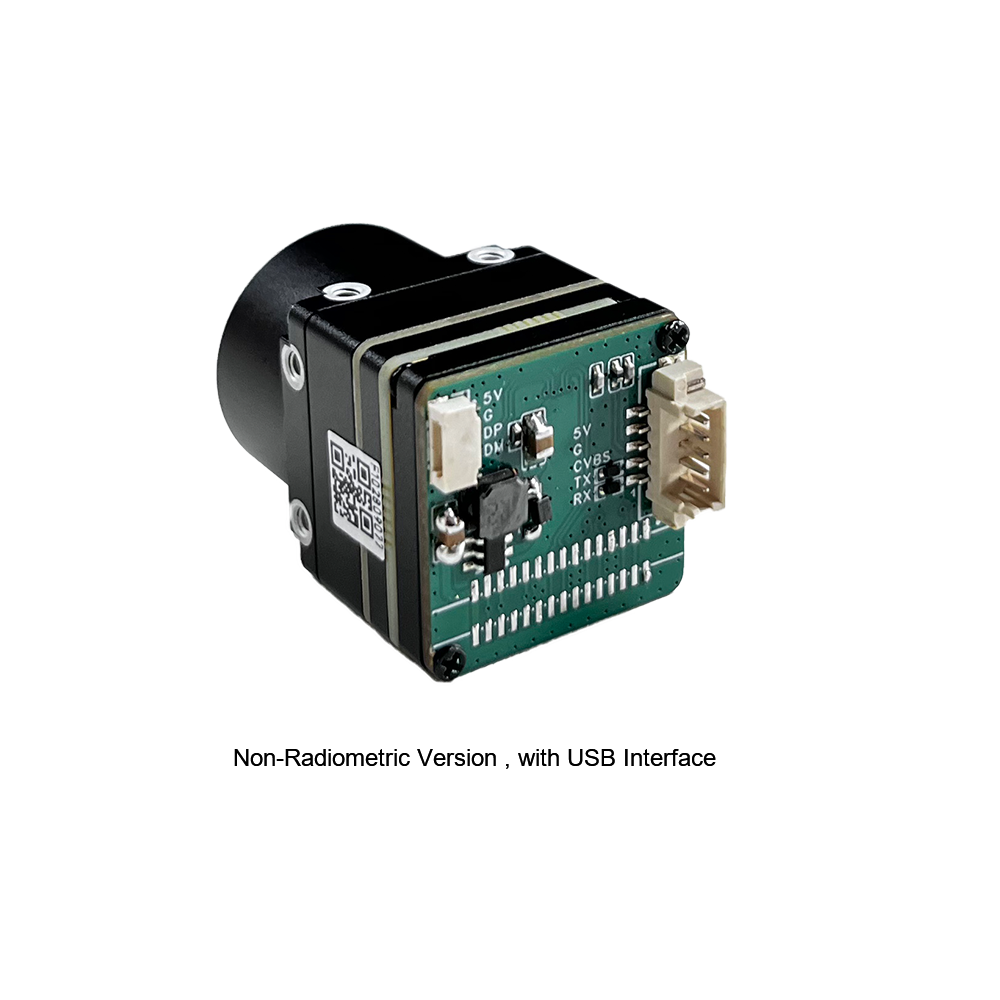

| Function | Radiometric Version(25Hz), Non-radiometric version (60Hz) |
| Interface | USB, CVBS, MIPI, RJ45, GMSL |
| About RJ45 and GMSL intertace | Thermal camera module with RJ45 and GMSL interfaces require a 40-day lead time. GMSL thermal camera modules are shipped with a one-meter cable by default. For other cable length options, please contact us. |
For bulk orders and wholesale pricing, please request a quote from our sales team.
Product Parameter of Mini 640 Uncooled LWIR Thermal Camera Module:
Resolution: 640*512
Detector Frame: Radiometric Version(25Hz),Non-Radiometric Version(60Hz)
Pixel Spacing: 12um
Response Wave Band: 8~14um
NETD: <50mK@25°C,F#1.0 (<40mK optional)
Lens Type: 4/7/9/13/15/18/25/35/50/60/75mm
Thermal Palettes: White heat; Black heat; support multiple pseudo colors.
Weight: <14.9 g(without lens)
Size: 21mm*21mm(without lens)
1.2. Characteristic
Compact & Lightweight Design
• Digital Video: YUV /USB /BT.656 /DVP/MIPI/Ethernet
• Analog Video: CVBS /PAL /NTSC
• Communication interface: UART/ RS232/ RS422/I2C/USB2.0/RJ45/GMSL
• Temp Measure Range: From -20℃ to +550℃
Clear Image & Accurate Radiometry
• lmage Processing: TECLESS algorithm/Nonuniformity correction/Digital filtering noise reduction/Digital detail enhancement
Various Interfaces for Easy Integration
1.3. Thermal Imaging Module Applications
Security inspection: security inspection, industrial monitoring, scientific observation, perimeter scanning, inspection robots, optoelectronic pods
Fire rescue: fire warning, fire helmet
Other specific applications: Drones , power detection and thermal imaging guided missile
Thermal Camera Module for Raspberry Pi/Orange Pi
Thermal Mines Detection
Supported Platform: Jetson Nano
GMSL Automotive Night Vision: Driver assistance, nighttime driving monitoring, and external environment perception
Intelligent Integration: Smart sensing devices, handheld temperature-measurement terminals, and embedded platforms for secondary development.
2.1. Product Packaging and Shipping
3.1. Product Paramenters
| Model | Mini640-4 | Mini640-7 | Mini640-9 | Mini640-13 | Mini640-15 | Mini640-18 | Mini640-25 | Mini640-35 | Mini640-50 | Mini640-60 | Mini640-75 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Resolution | 640*512 | ||||||||||
| Detector Type | Vox | ||||||||||
| Detector Frame | 25 Hz/30Hz/60 Hz | ||||||||||
| Pixel Spacing | 12μm | ||||||||||
| Response Wave Band | 8～14μm | ||||||||||
| NETD | ≤50mK@25℃,F#1.0（≤40mK optional） | ||||||||||
| Lens: | |||||||||||
| Focus | 4mm | 7mm | 9mm | 13mm | 15mm | 18mm | 25mm | 35mm | 50mm | 60mm | 75mm |
| FOV | 100°*82° | 64°*52° | 48.7°*38.6° | 31.9°*25.7° | 29.3°*23.5° | 24.2°*19.5° | 17.5°*14° | 12.5°*10° | 8.8°*6.4° | 7.3°*5.9° | 5.9°*4.7° |
| F-number | 1/1.1/1.2 | ||||||||||
| Image Adjustment: | |||||||||||
| Polarity | White hot/black hot/support multiple pseudo colors | ||||||||||
| Module Power Supply: | |||||||||||
| Supply Voltage | 5V or 12V | ||||||||||
| Typical Dissipation @25℃ | <0.7W / ＜3W | ||||||||||
| Video output: | |||||||||||
| Digital Video | YUV /USB /BT.656 /DVP/MIPI/Ethernet | ||||||||||
| Analog Video | CVBS or PAL or NTSC | ||||||||||
| Serial Communication | UART/ RS232/ RS422/I2C/USB2.0/RJ45/GMSL | ||||||||||
| Module Physical Properties:(Without Lenses and Flanges) | |||||||||||
| Weight | ＜14.9g(without lens) | ||||||||||
| Size | 21x21mm(without lens) | ||||||||||
| Temperature Measurement: | |||||||||||
| Temp Measure Rang | From -20℃ to +550℃ | ||||||||||
| Environmental Adaptability: | |||||||||||
| Work Temperature(General/ RJ45 Eth) | From -40℃ to +80℃/-20℃~+60℃ | ||||||||||
| Storage Temperature | From -50℃ to +85℃ | ||||||||||
| Humidity | 5%-95%, no condensation | ||||||||||
