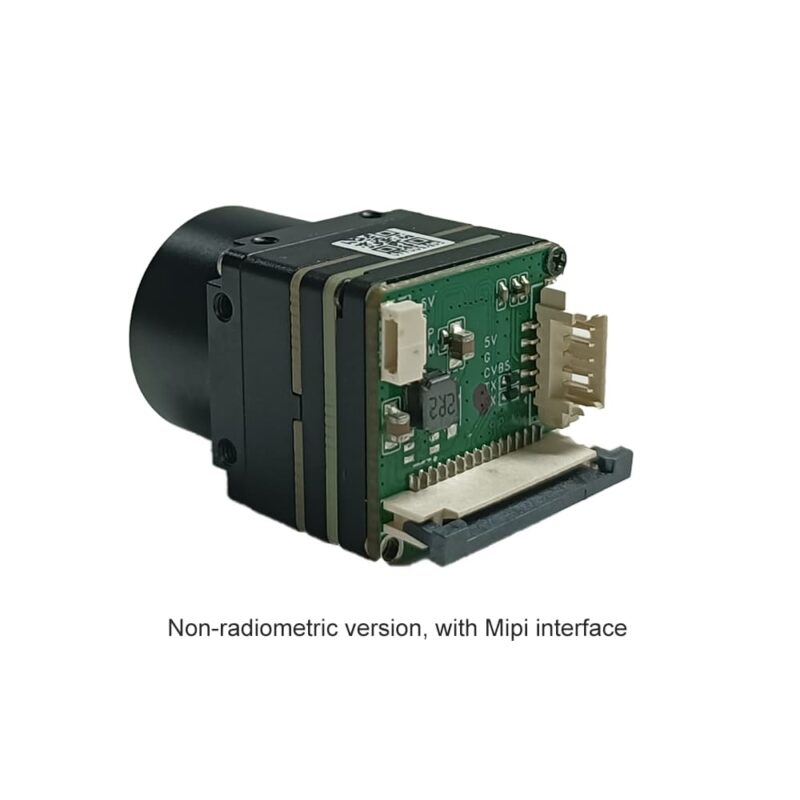

Uncooled Infrared Mipi 640 384 256 9mm Thermal Imaging Camera Module For Drones
| Weight | 0.5 kg |
|---|---|
| Shipping weight of one thermal imaging camera module | 0.5 kg |
| Net Weight (without lens) | <8.6g |
| Interface output | Mipi |
| Resolution | 640x512, 384x288, 256x192 |
| Lens | 4mm, 7mm, 9.1mm, 13mm, 18mm |
Product Parameter of Mipi 640 Uncooled LWIR Thermal Camera Module:
Resolution: 256*192/384*288/640*512
Detector Frame: 30/60Hz
Pixel Spacing: 12um
Response Wave Band: 8~14um
NETD: ≤40mK@25℃,F#1.0,25Hz
Lens Type: 9.1/13/18mm
Non-uniformity correction: Shutter correction/no-blocking algorithm correction
Polarity/false color: White hot/black hot/support multiple pseudo colors.
Weight: ＜8.6g
Dimensions (without lens): 21*21*10.3mm
1.2. Characteristic

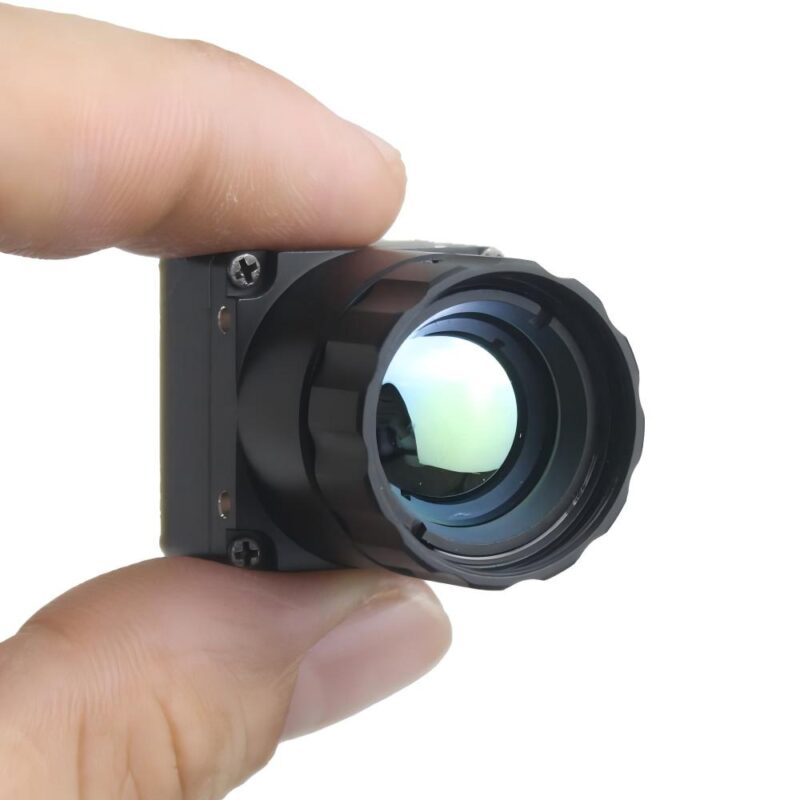

Compact & Lightweight Design
• Digital Video: DVP/BT656/USB2.0/MIPI
• Simulation Video: PAL、NTSC
• Communication interface: UART/I2C/USB2.0
• Operating temperature: -40℃~+80℃
Power input: 5V
Thermal time constant: ＜12ms
Note 1: The above parameters are all measured under laboratory conditions. The actual specifications and test methods are subject to the test report.
1.3. Thermal Imaging Module Applications
Security inspection: industrial monitoring, perimeter scanning, inspection robots, optoelectronic pods
Fire rescue: fire warning, fire helmet
Other specific applications: Thermal Camera for Drones , power detection and thermal imaging guided missile
Thermal Camera Module for Raspberry Pi/Orange Pi
Thermal Mines Detection
2.1. Product Packaging
3.1. Product Paramenters
| Model | Mini2 | ||
|---|---|---|---|
| Resolution | 256×192 | 384x288 | 640x512 |
| Detector Type | Vanadium Oxide Uncooled Infrared Focal Plane Detector | ||
| Detector frame rate | 25/50Hz | 30/60Hz | 30/60Hz |
| Pixel Spacing | 12μm | ||
| Response Wave Band | 8～14μm | ||
| NETD | ≤40mK@25℃,F#1.0,25Hz | ||
| Thermal time constant | ＜12ms | ||
| Image Adjustment | |||
| Non-uniformity correction | Shutter correction/no-blocking algorithm correction | ||
| Brightness/contrast adjustment | 0～100 levels are optional | ||
| Polarity/false color | White hot/black hot/support multiple pseudo colors | ||
| Electronic zoom | 1.0～8.0× continuous zoom (step length 0.1) | ||
| Image Mirroring | Up and down/left and right/diagonal | ||
| Electrical parameters | |||
| Simulation Video | PAL/NTSC | ||
| Digital Video | DVP/BT656/USB2.0/MIPI | ||
| Communication interface | UART/I2C/USB2.0 | ||
| Power input | 5V | ||
| USB output typical power consumption | ＜0.35W | ＜0.42W | ＜0.7W |
| Physical properties | |||
| Weight (without lens) | <7g | <8.6g | |
| Dimensions (without lens) | 21×21×10.3mm | ||
| Environmental adaptability | |||
| Operating temperature | -40℃~+80℃ | ||
| Storage temperature | -50℃~+85℃ | ||
| Wet Spend | 5%-95%, No condensation | ||
| Vibration move | 6.06g, random vibration, all axes | ||
| Rush hit | 80g @4ms, The rear peak sawtooth wave, 3 Axis 6 Towards | ||
4.1. Customer Reviews
5.1. FAQ
1.Q: Can you help us design or modify the products as our requests?
A: Yes, customized service and OEM/ODM are welcomed.
2. Q:What are the terms of Payments?
A: T/T,( in advance) Western Union, Paypal and Cash.
3. What is your shipping way ?
A: You can choose By sea(boat), By air(airplane), By Express(DHL, UPS, EMS, FEDEX, SF, TNT, etc.) . Given your detail address, we can offer the estimate shipping cost for your reference.
4. How about warranty?
A: One or three years warranty for different products.
